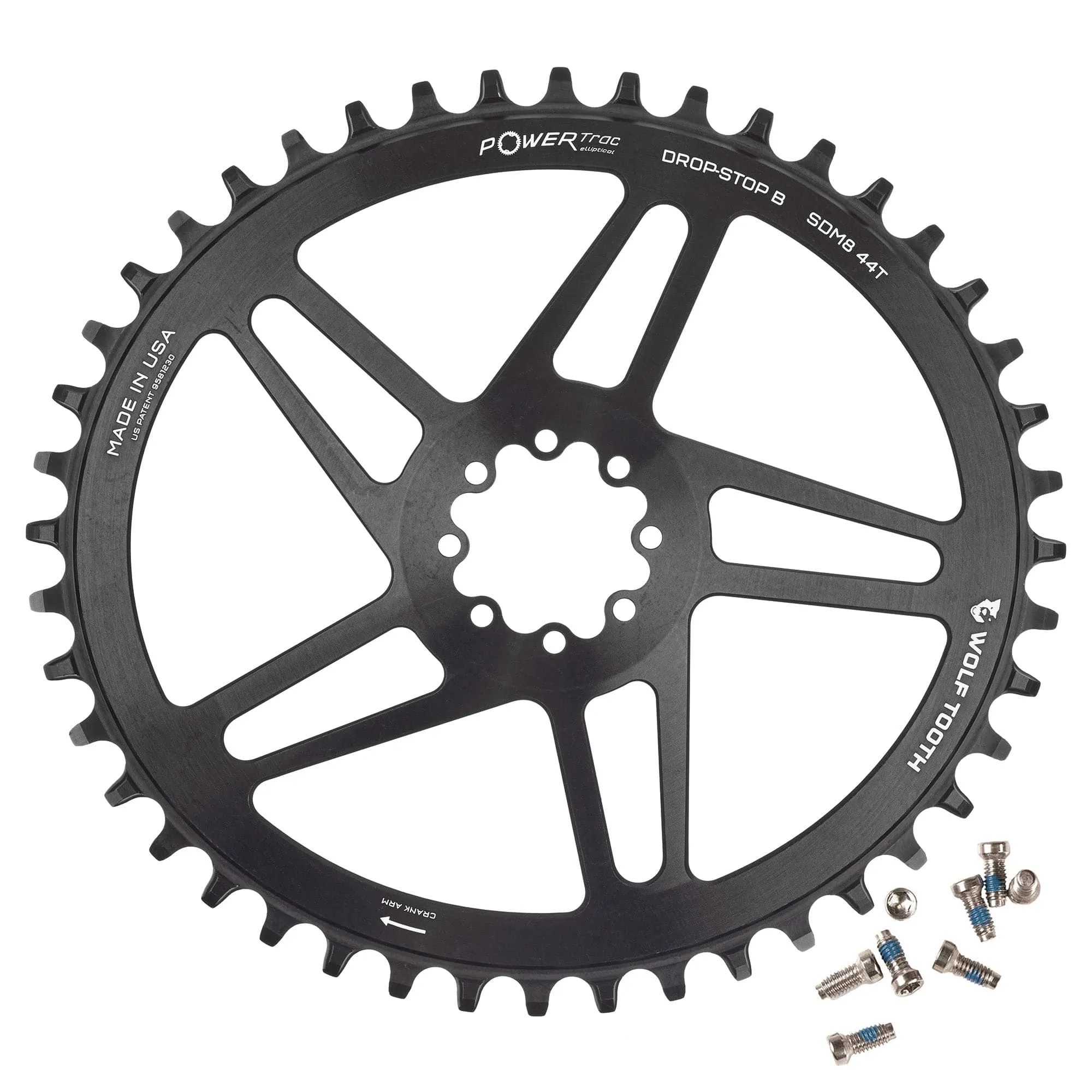

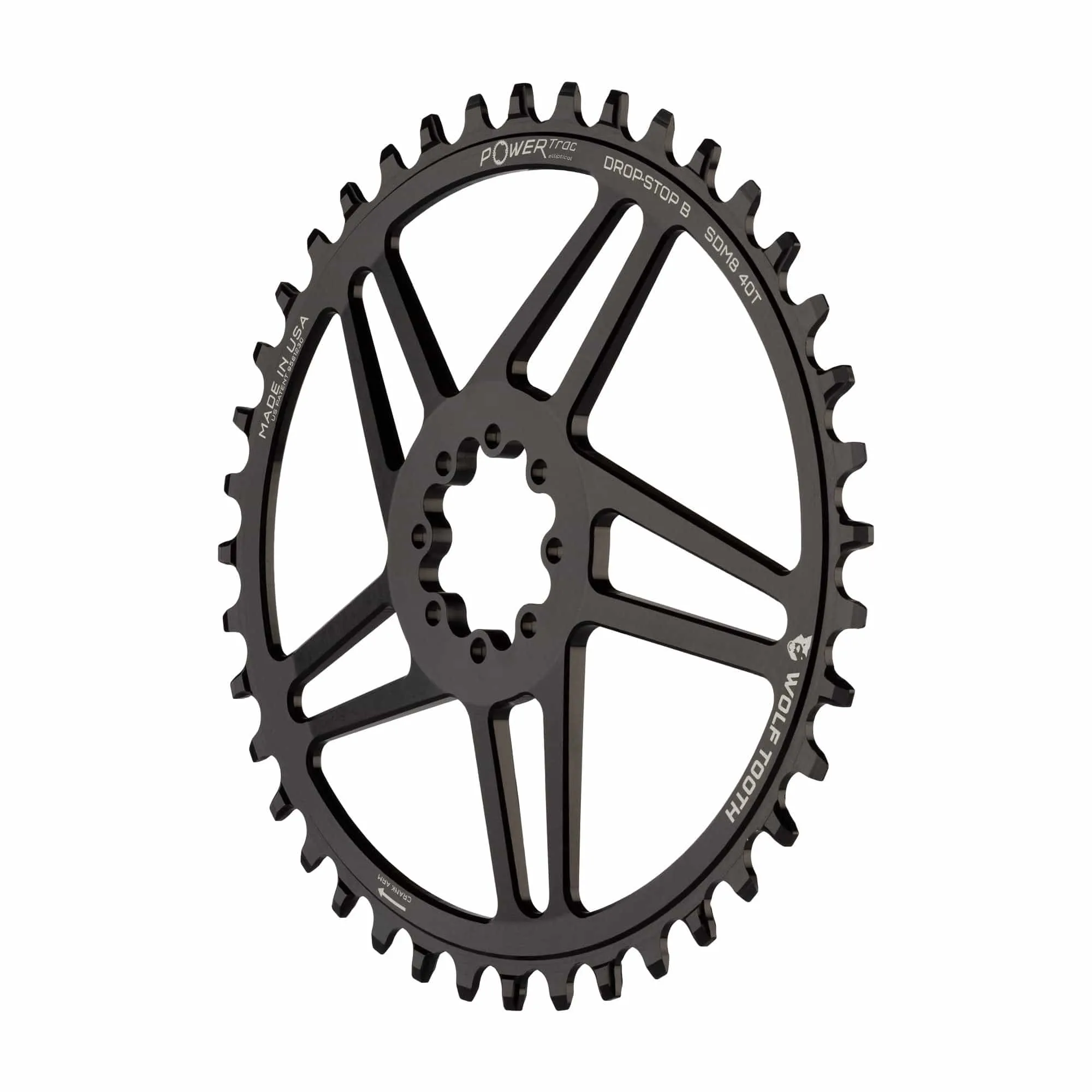

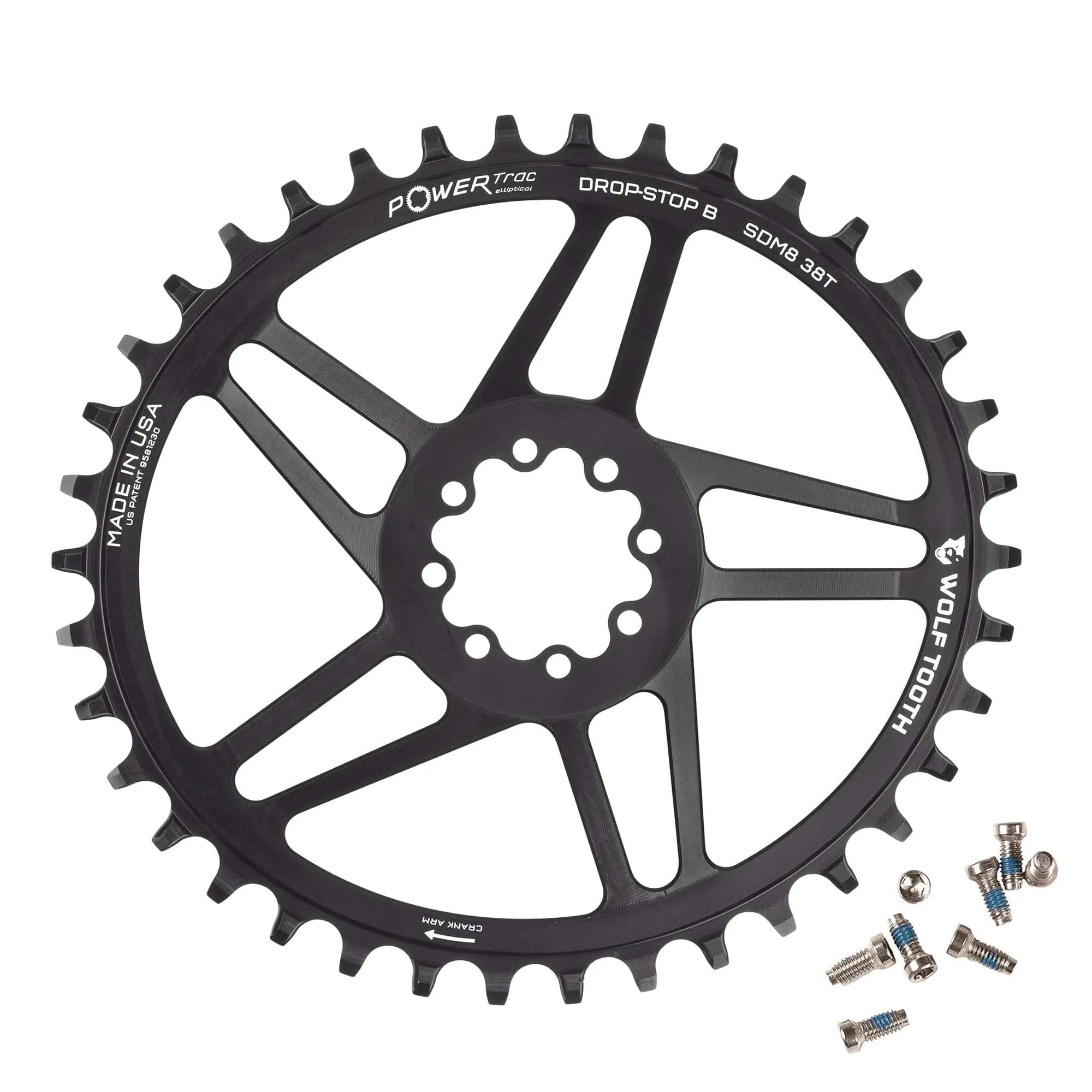

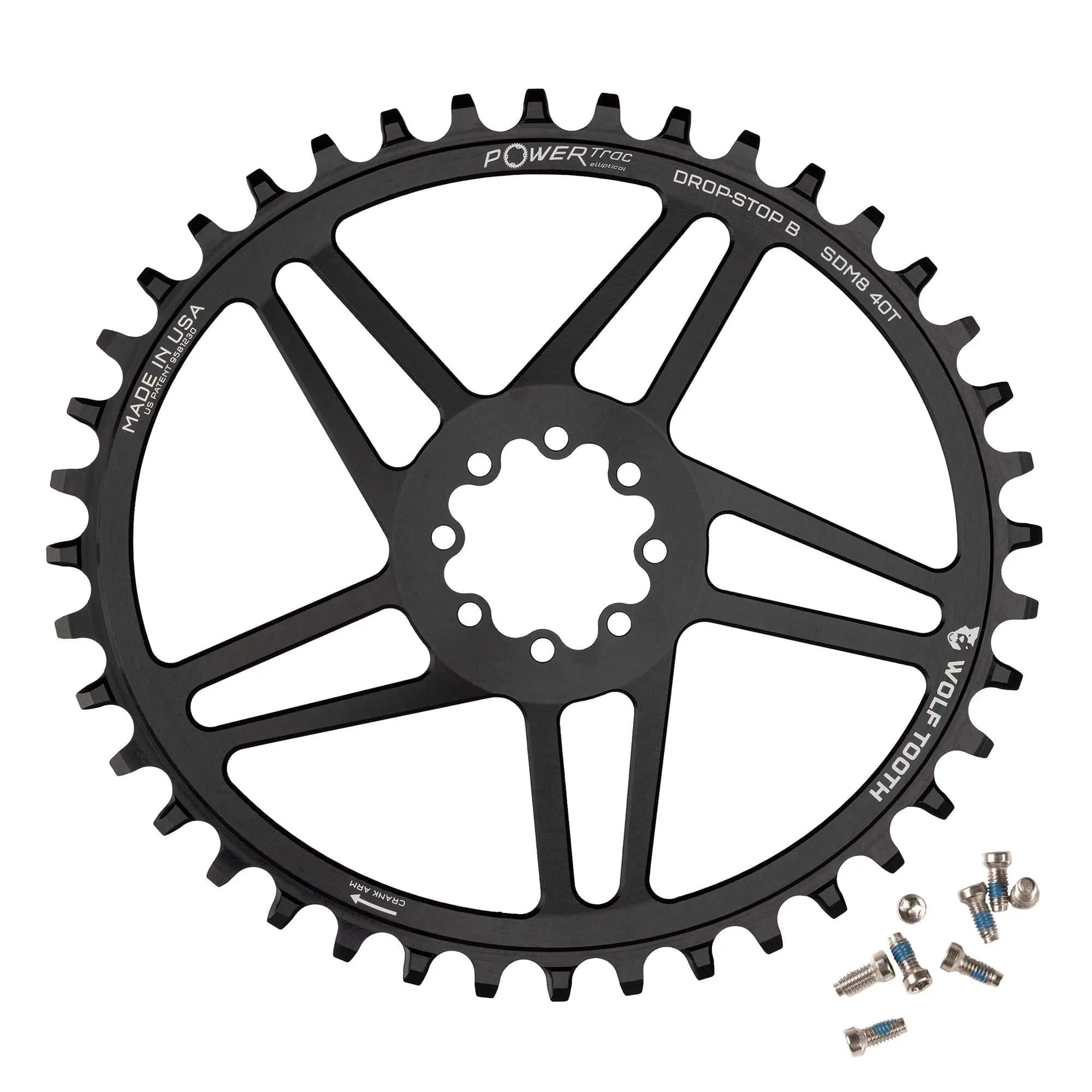

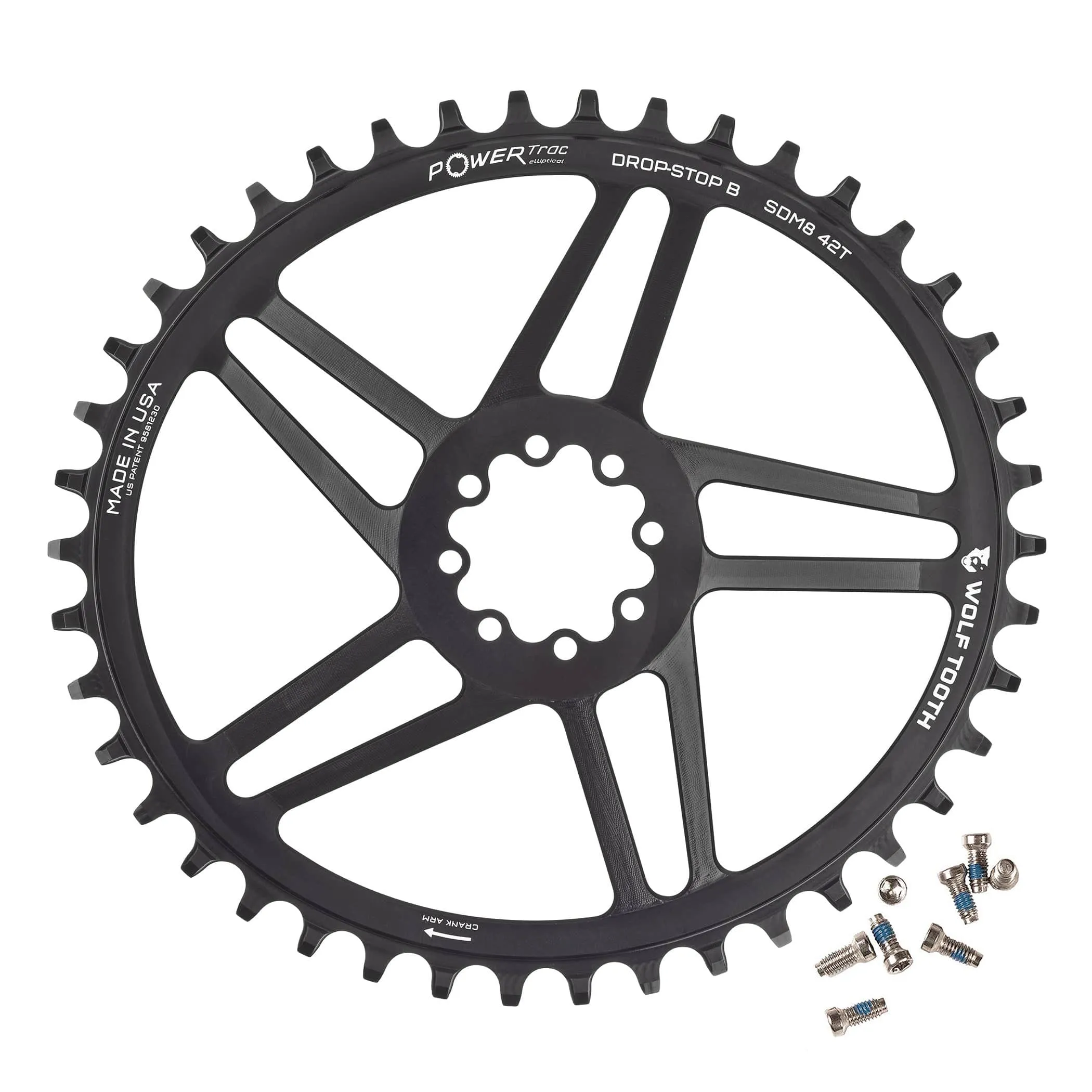

Wolf Tooth Oval Direct Mount Chainrings for SRAM 8-bolt Cranks replace your existing spider and chainring with one clean looking, lightweight, and stiff piece of machined billet. They feature our patented Drop-Stop® design for the best wear life, chain retention, and mud clearance. Drop-Stop B is optimized for SRAM Eagle and Flattop chains.
Compatibility

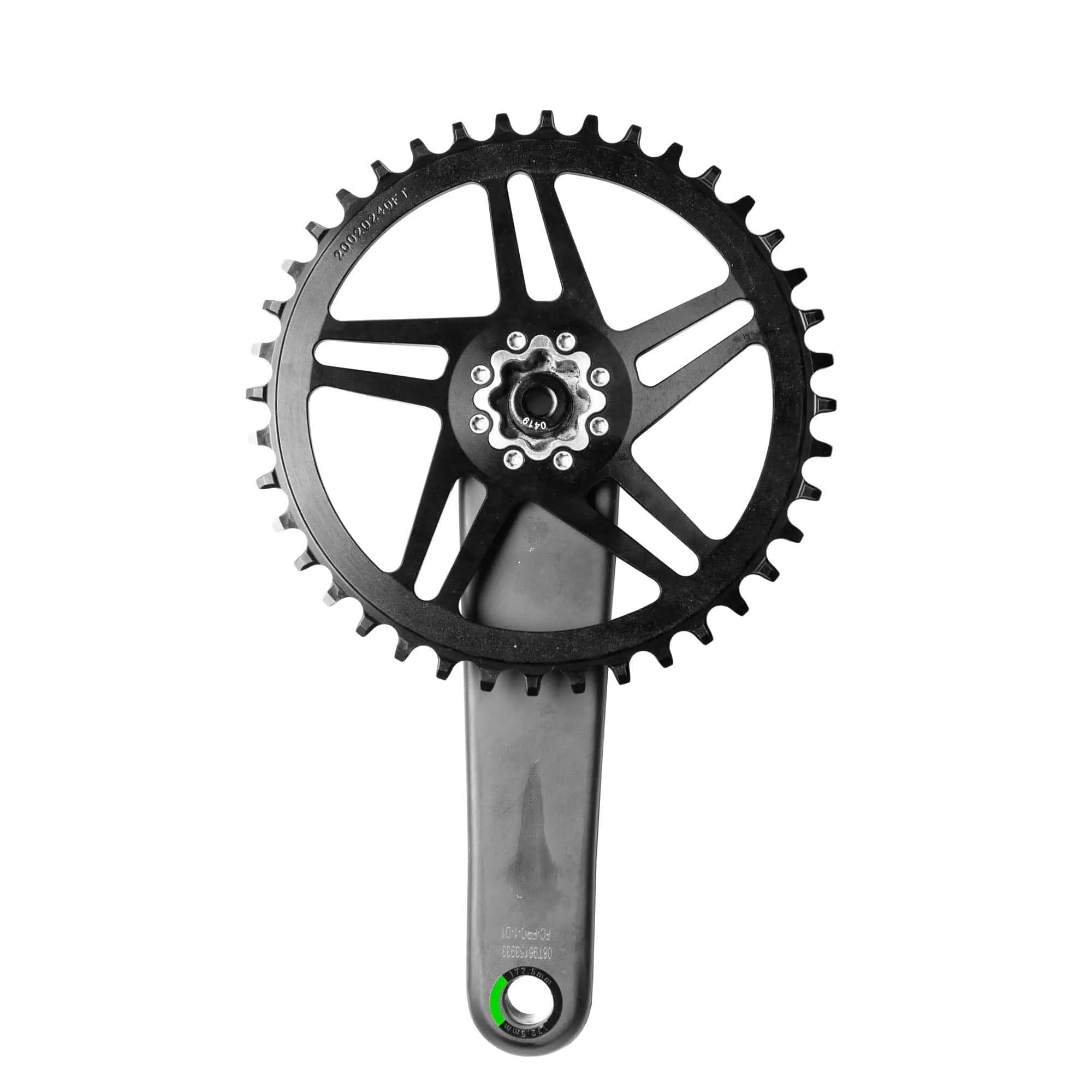

- These direct mount chainrings will replace your existing chainring and spider or replace the direct mount chainring for SRAM AXS cranksets and other cranks that use the 8-bolt mounting standard.
- SRAM Direct Mount DUB road cranksets use the 8-bolt mounting standard. Any of those cranksets with a removable spider also use the 8-bolt mount.
- Compatible with SRAM 12-speed and 13-speed groupsets including SRAM Red XPLR AXS.
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud-shedding ability.
- Chainline is 45mm on standard spindle cranks and 47.5mm on wide spindle cranks for 38-44t chainrings.
Recommendations
- Recommend the use of a clutch-style rear derailleur for the best chain security
- For Installation, use the included custom T20 bolts. Torque to 4Nm with a T20 bit.
Related Products
Tech Specs
Weight: 38T • 81g | 40T • 87g | 42T • 97g | 44T • 117g
Material: 7075-T6 aluminum
Made in the USA
